HOW TO USE

Template details

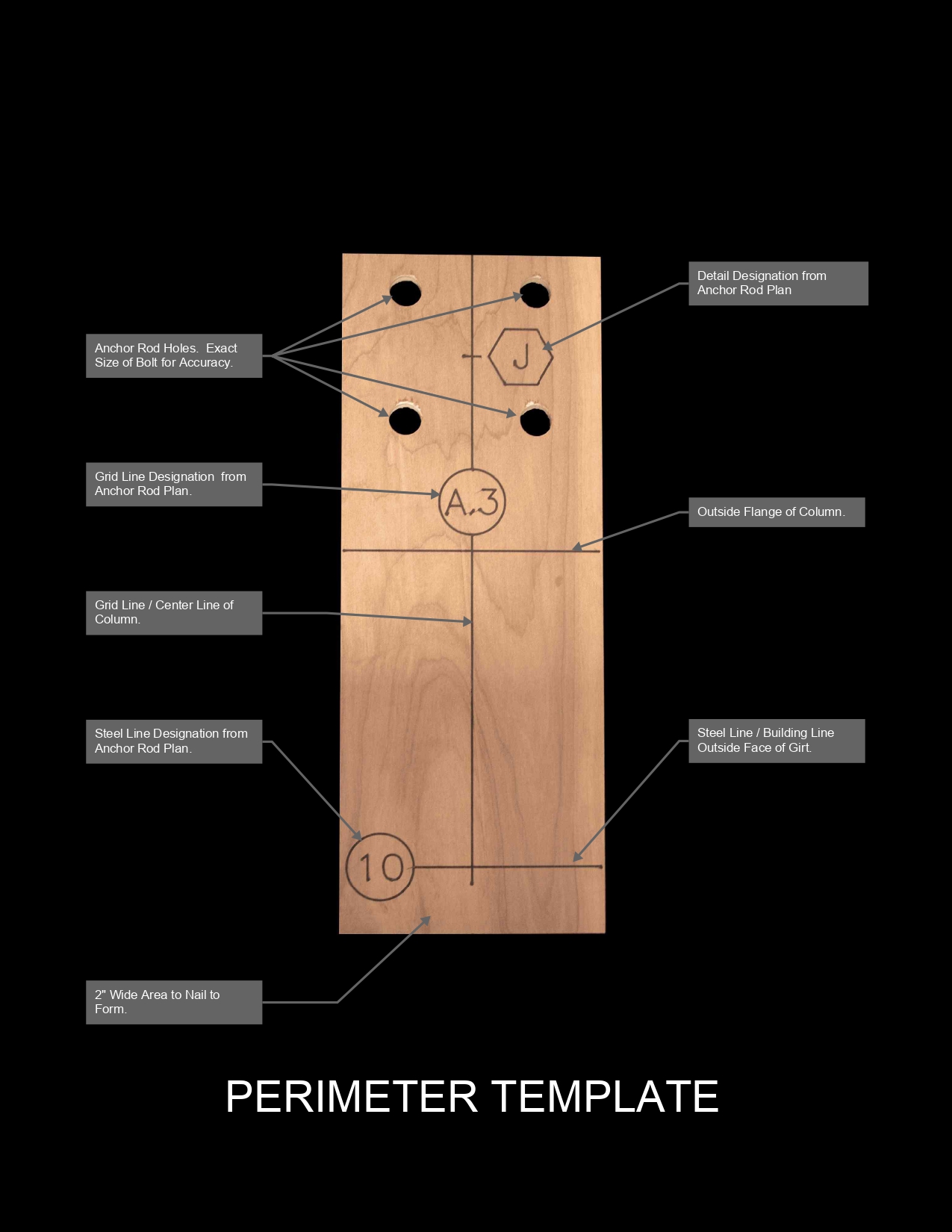

PERIMETER

Always use a proper personal protective equipment when assembling anchor rods and templates.

  • PPE usage example 1
  • PPE usage example 2

The templates are designed to maintain proper bolt spacing and to facilitate accurate locating of the bolt patterns.

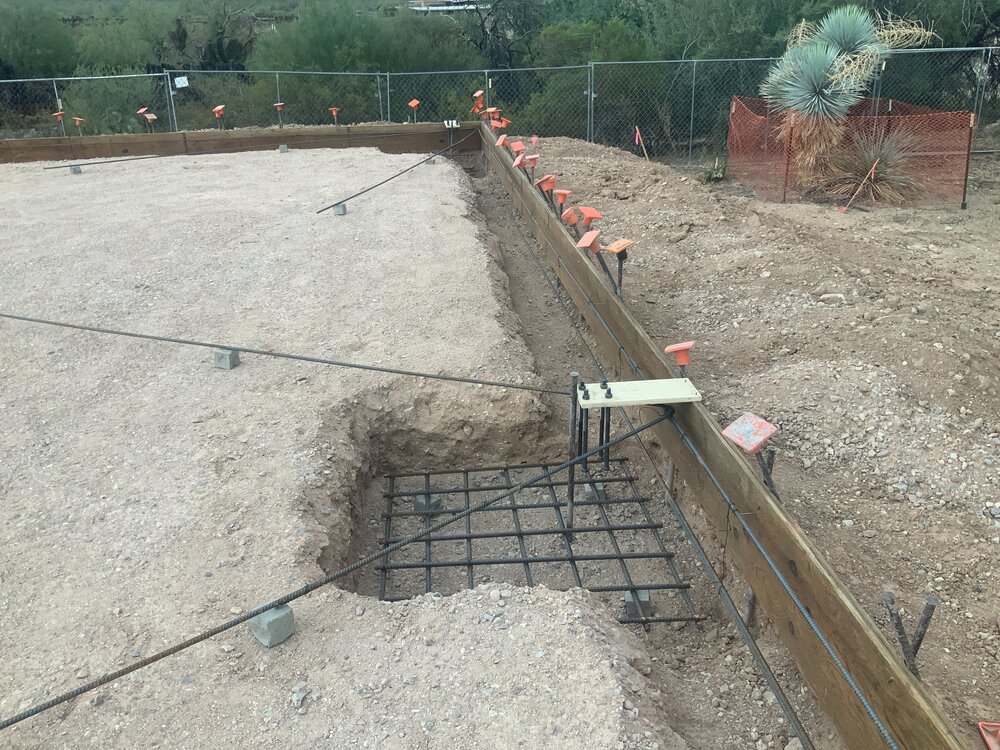

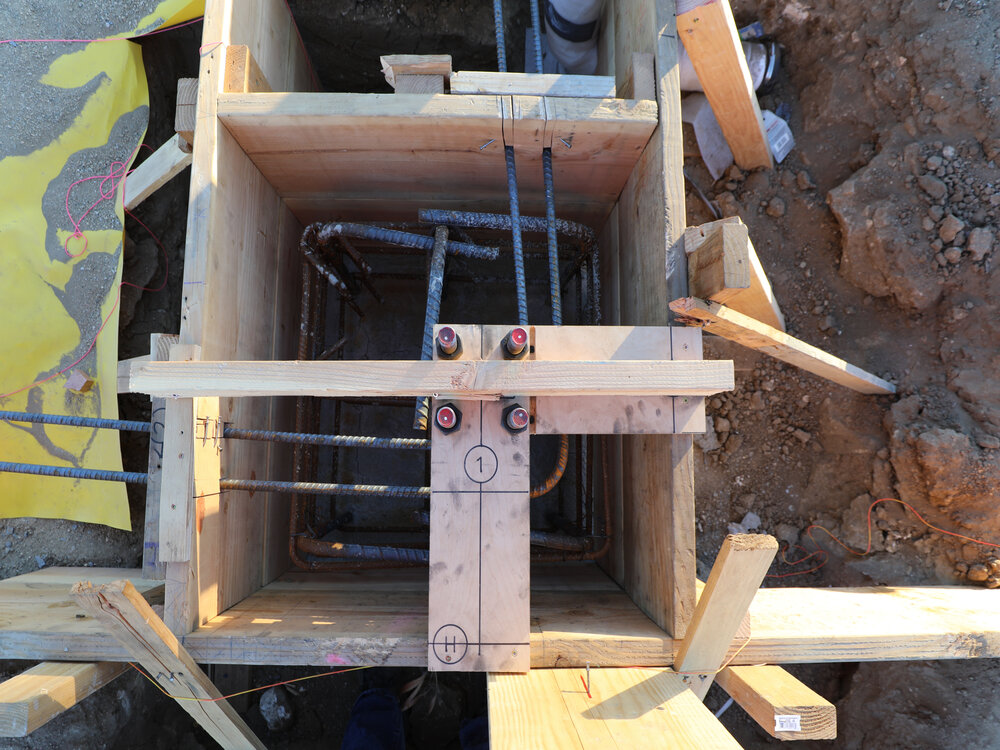

  • Support example 1

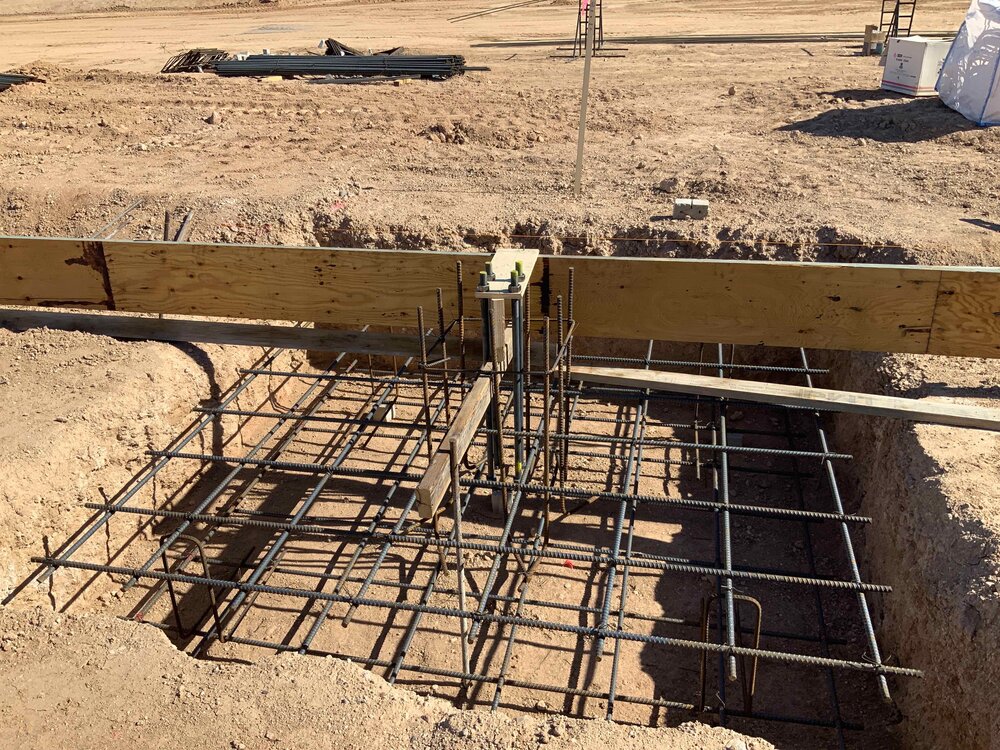

  • Support example 2

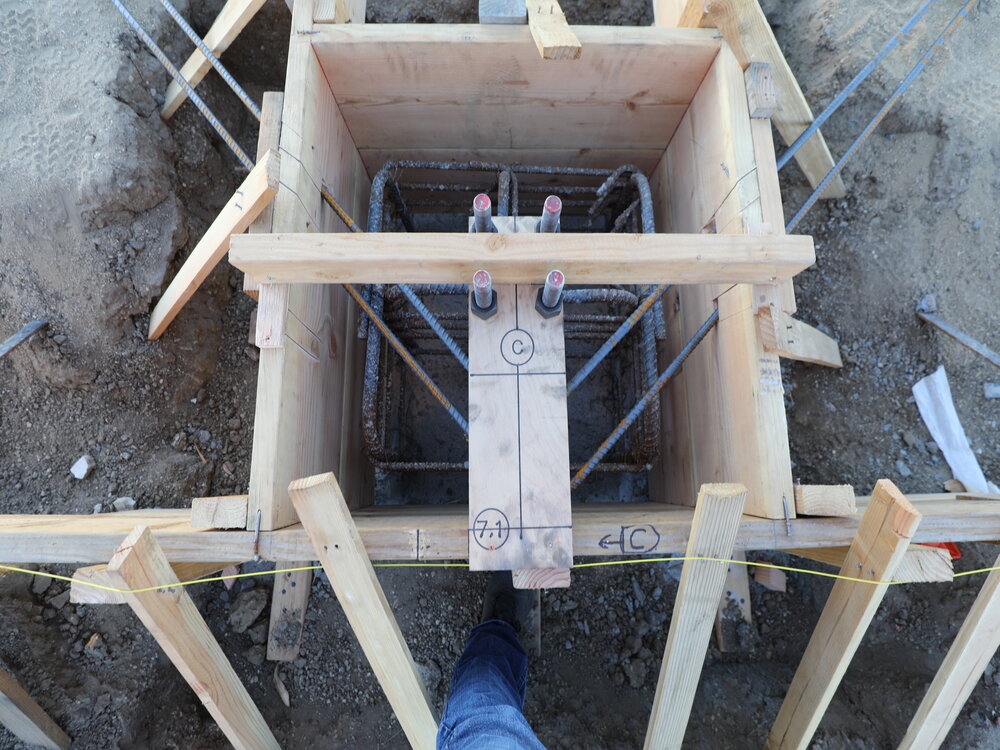

  • Support example 3
  • Support example 4

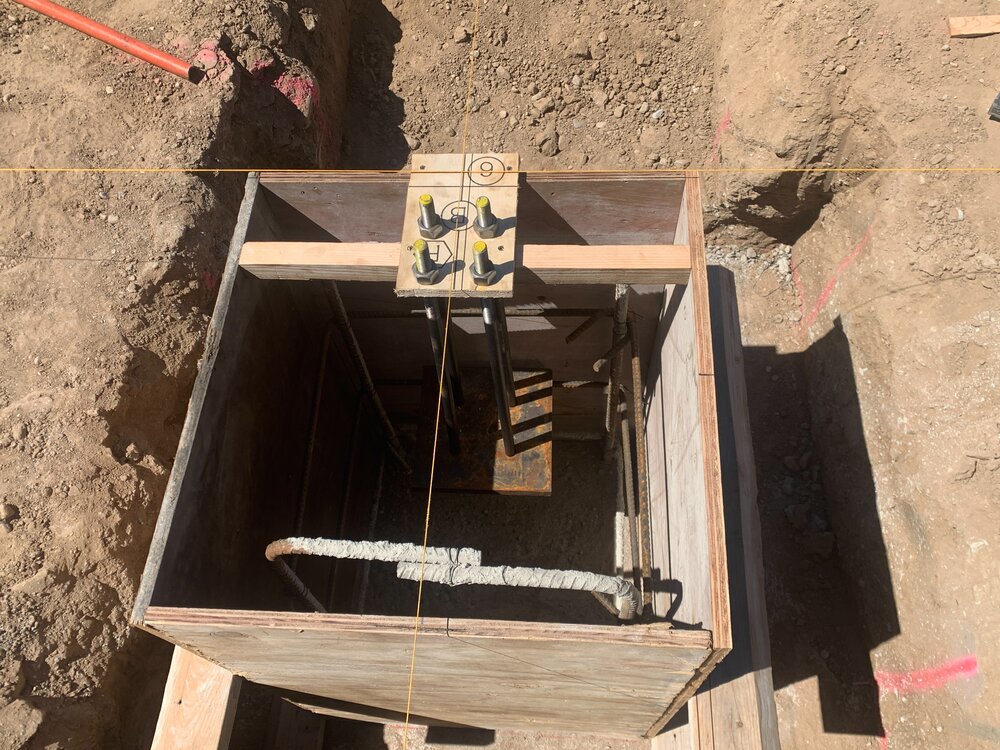

  • Support example 5

The templates are designed only to maintain proper anchor rod location. The nailing area is for securing location and not supporting the weight of bolts. It is the responsibility of installer to provide the means and methods to provide adequate support of the anchor rods during concrete placement.

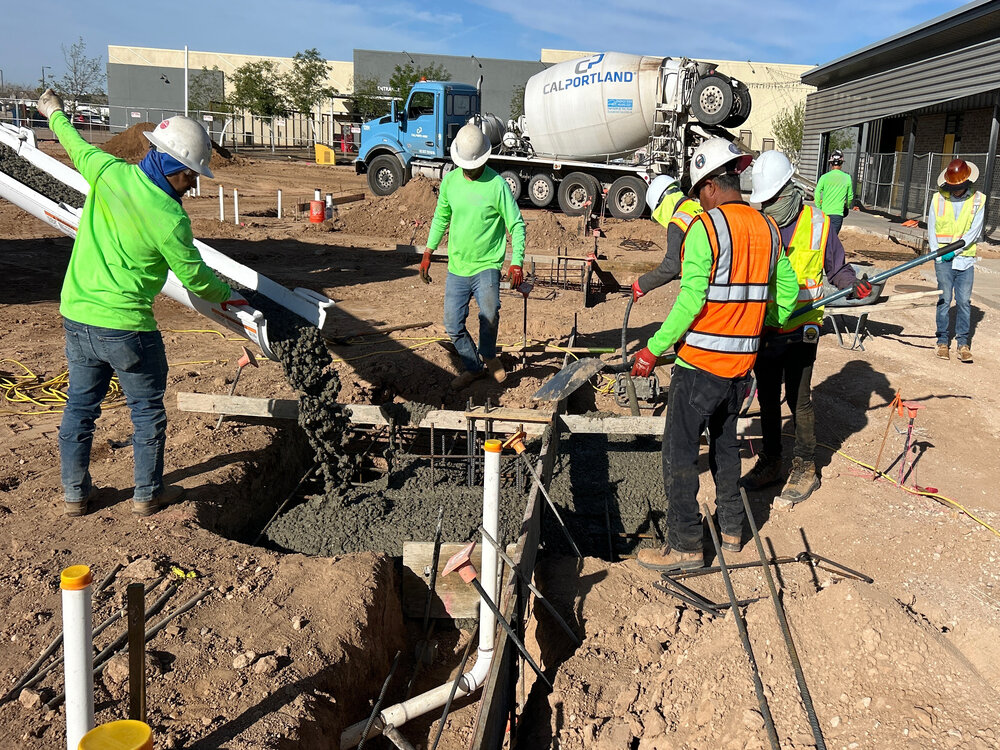

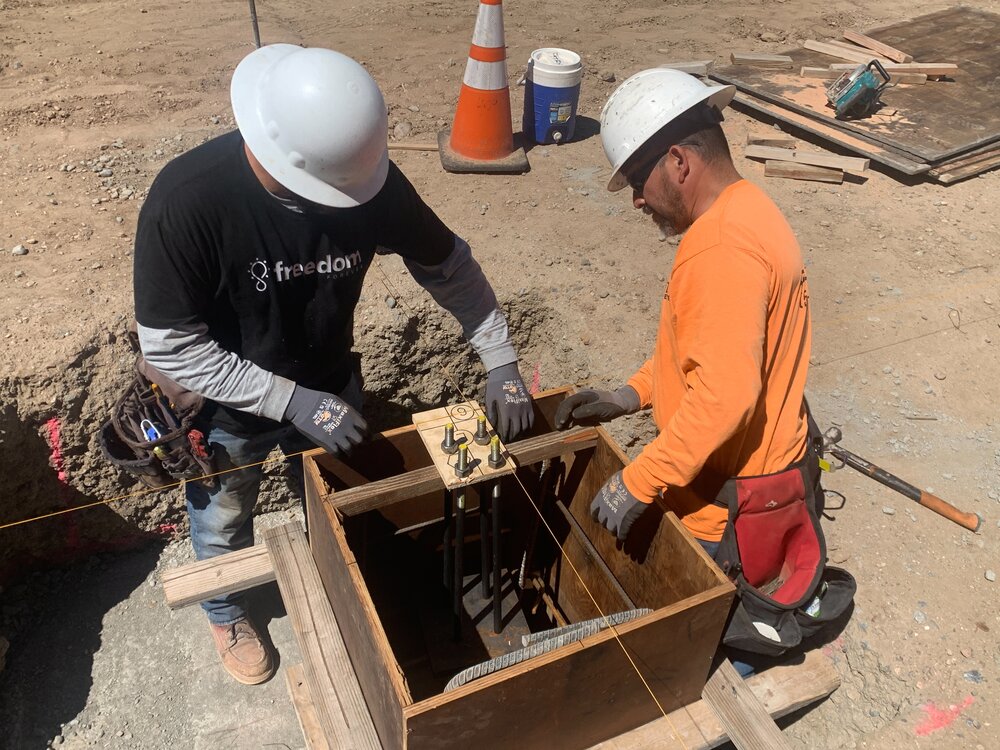

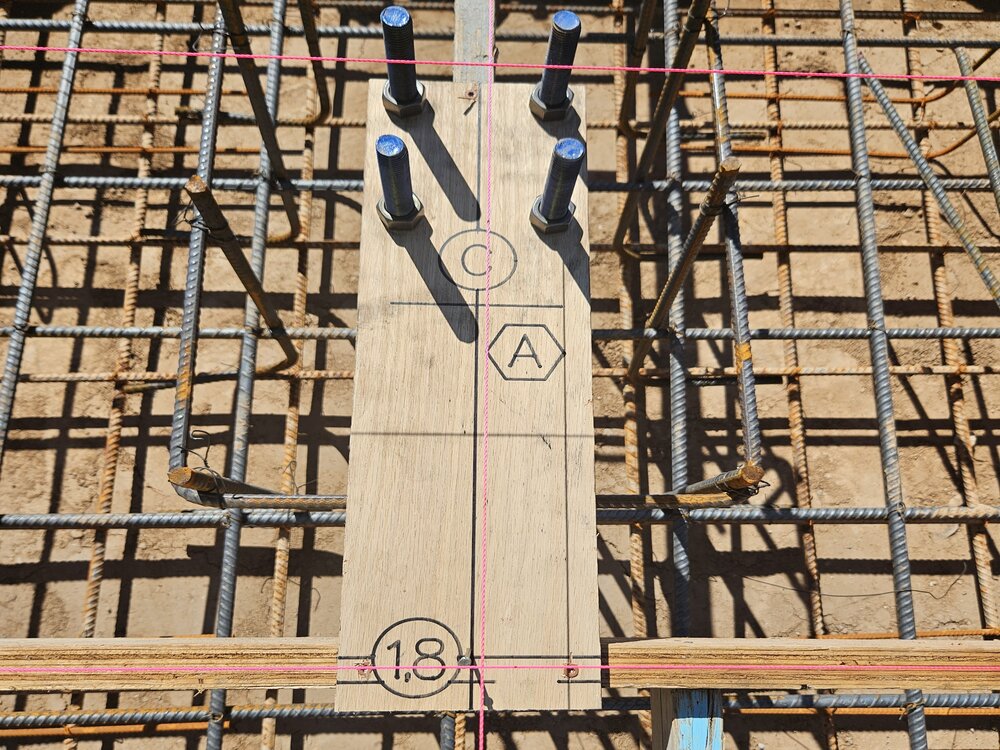

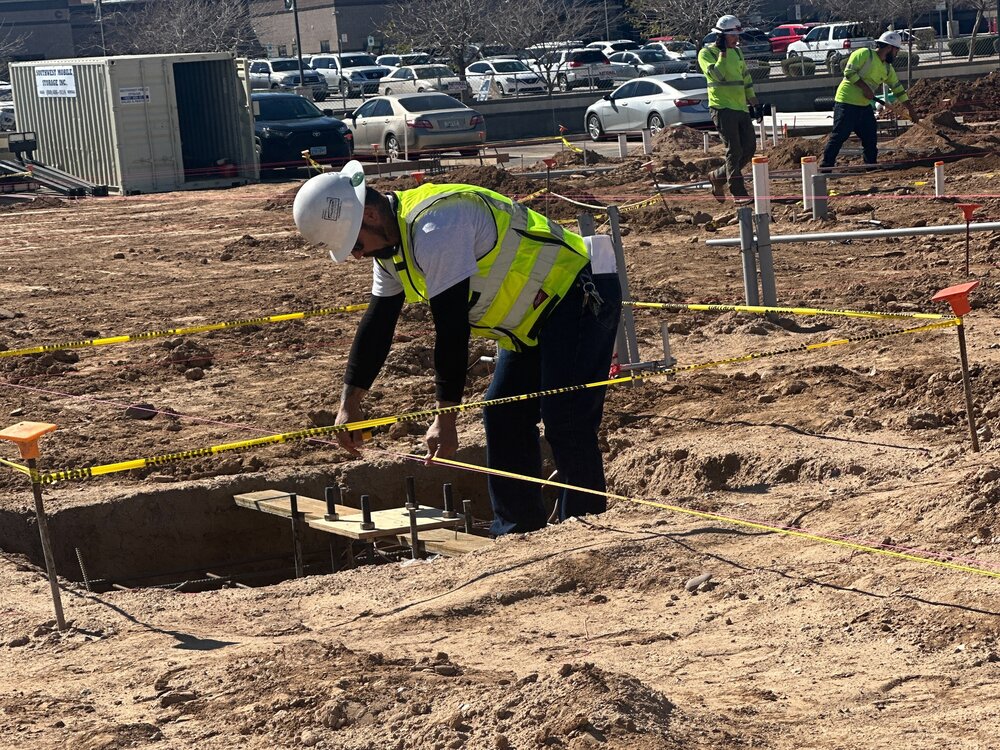

  • Placement example 1
  • Placement example 2

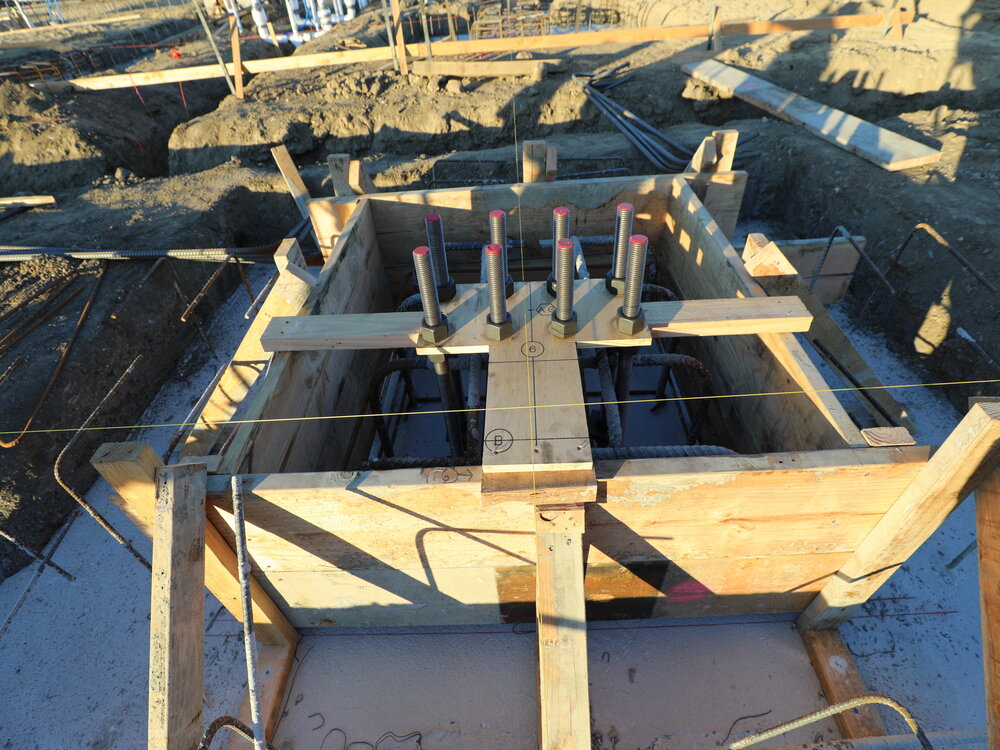

  • Placement example 3

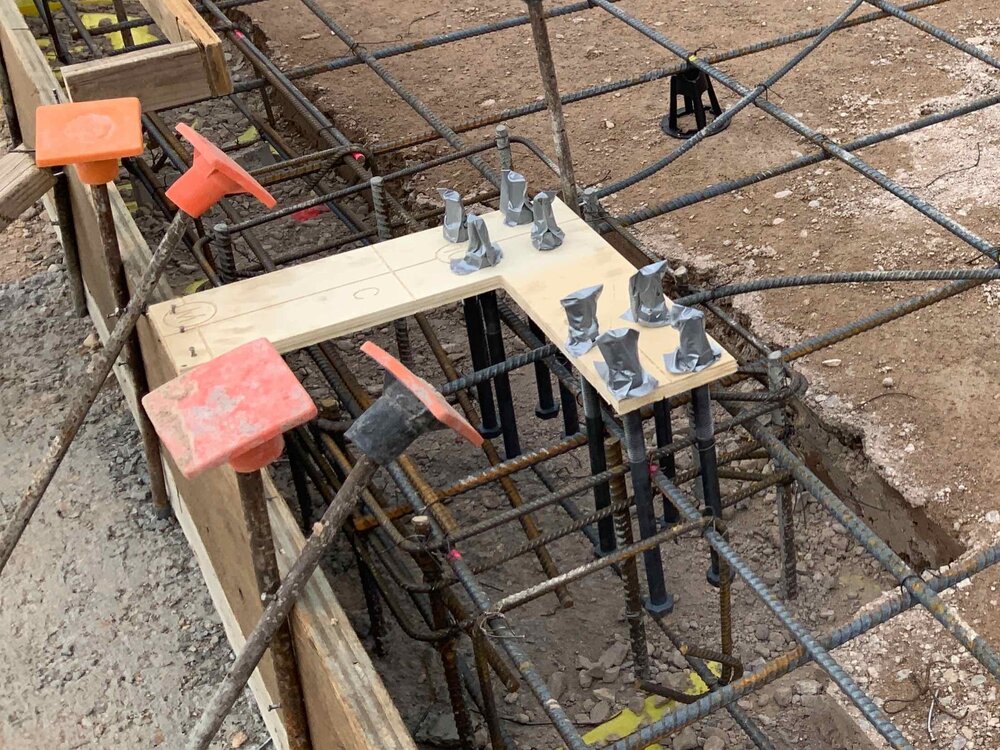

  • Placement example 4
  • Placement example 5
  • Placement example 6
