ANCHOR BOLT READY TEMPLATES

PRECISION, QUALITY, RELIABILITY

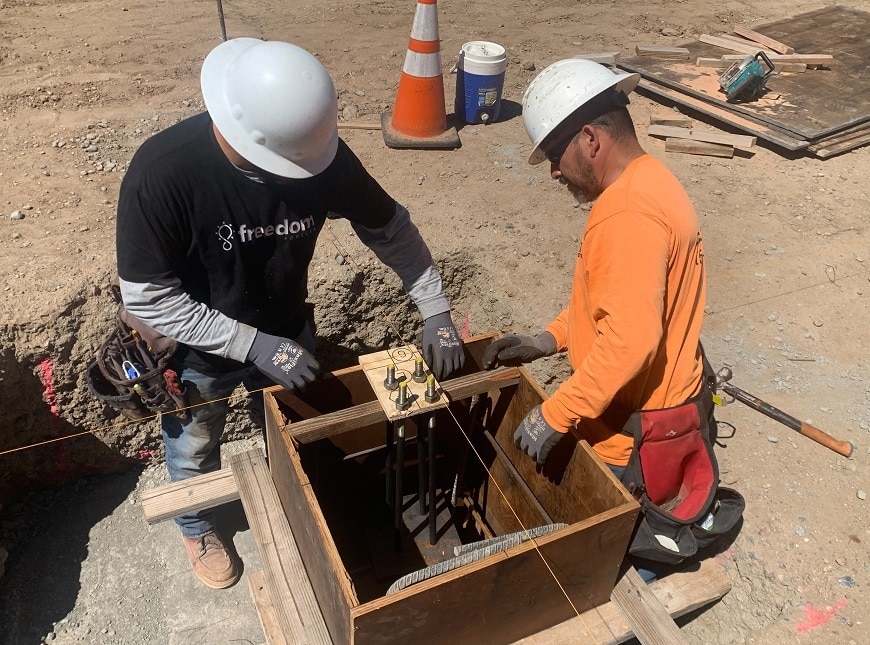

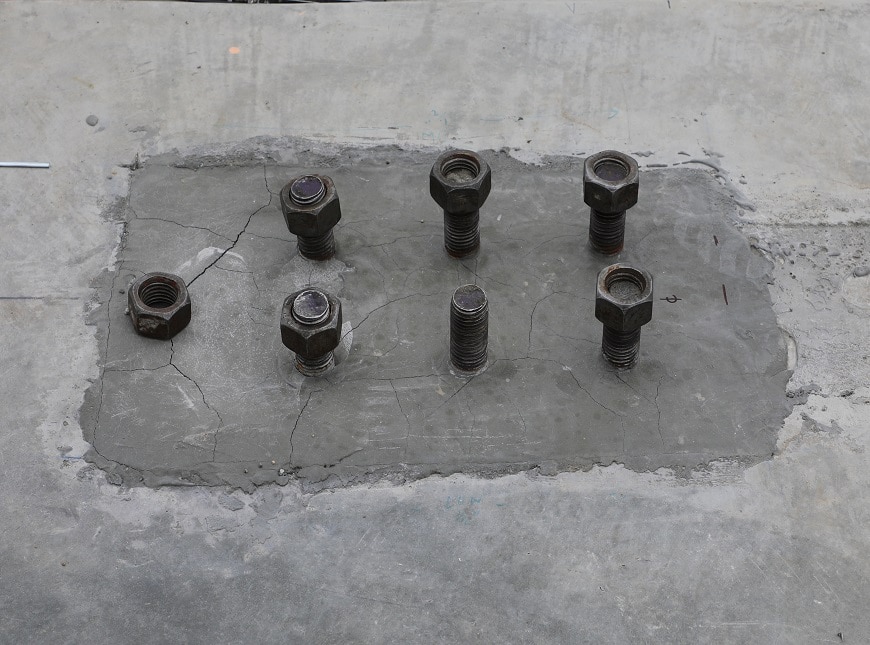

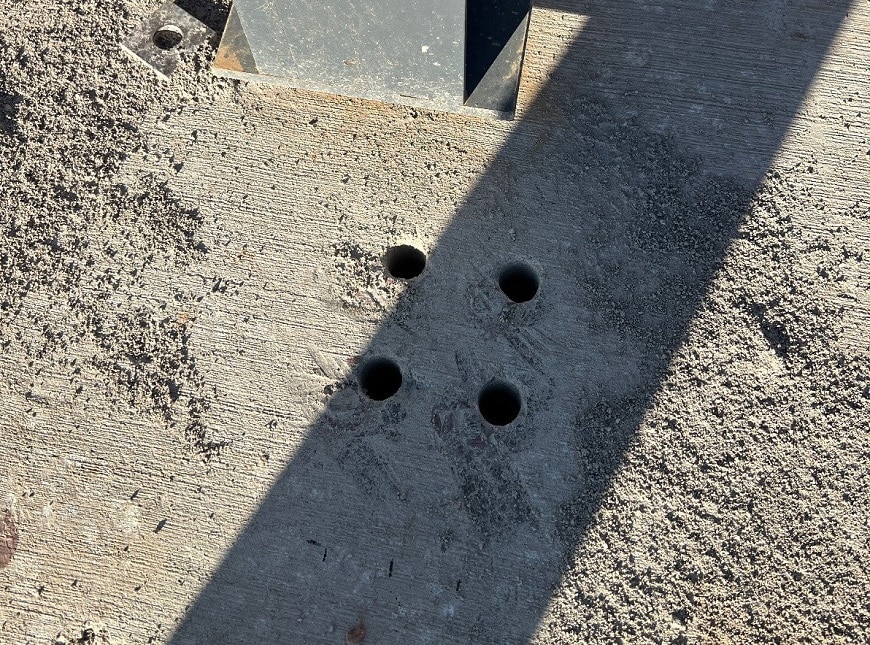

Features and benefits

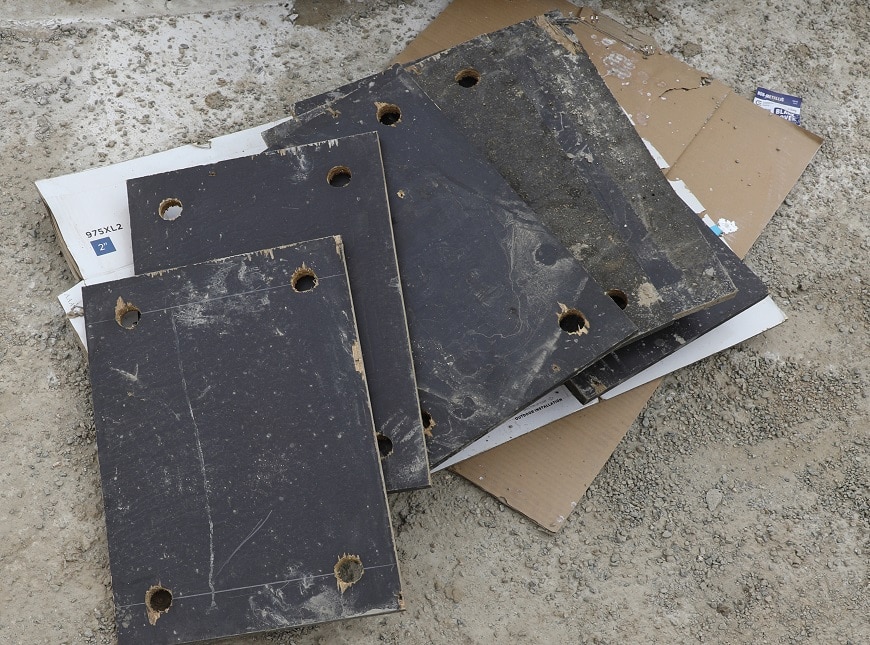

We build quality

templates

We specialize in providing high-quality, precision-engineered anchor bolt templates to ensure your construction projects start with a solid foundation. Our custom templates are designed for accuracy and ease of use, streamlining your installation process and guaranteeing reliable results every time. Trust us for your anchor bolt template needs and experience the difference in quality and performance.

REQUEST A QUOTE

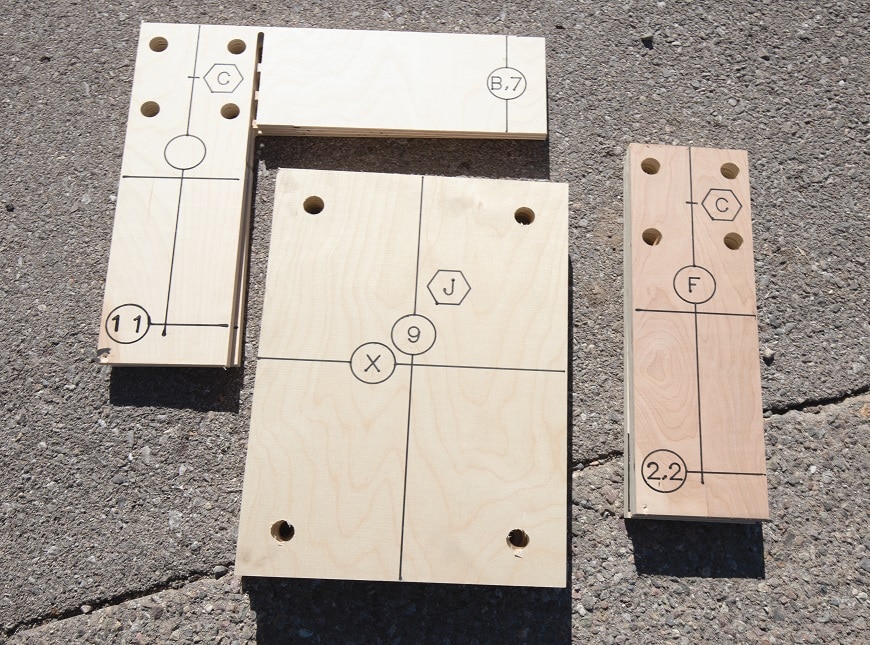

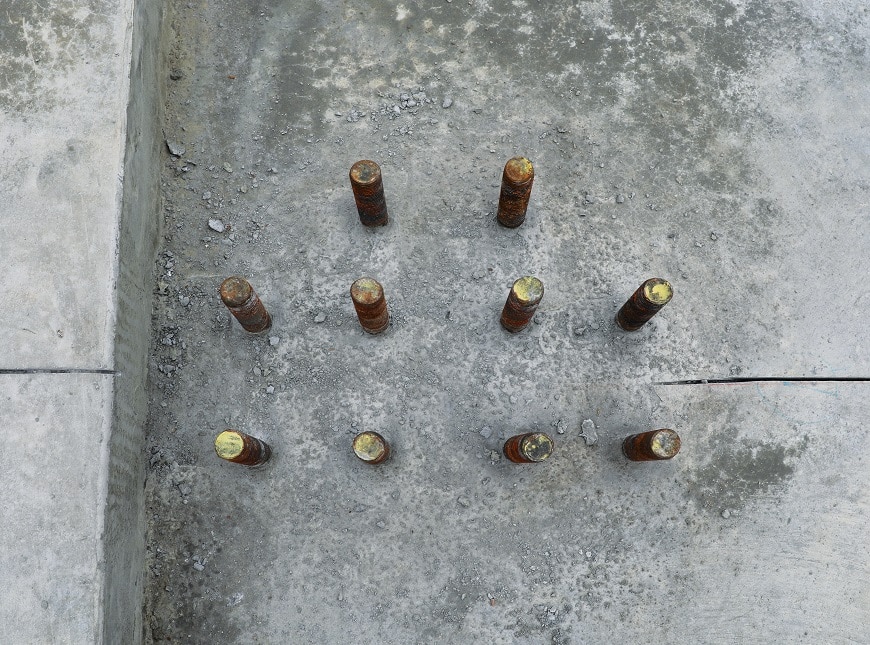

Template examples

Pre-engineered metal building anchor rod plans are difficult for contractors to interpret since each manufacturer has their own standards and they are dimensioned differently than conventional structures. Below are examples of how the plans translate to the finished template that ensures proper placement.

Bypass Girt

This is the most common Perimeter template where the inside face of girt bolts to the outside face of the column. Steel line, edge of concrete, is typically the girt depth away from face of column.

Flush Girt

A Perimeter template where the outside face of girt is flush with the outside face of column. Steel line, edge of concrete aligns with outside face of column.

Inset Girt

A Perimeter template where the girt offset is not equal to the girt depth or is flush to the column. The distance from the steel line, edge of concrete, to the face of column is most commonly 1" or 1.5" but can be any dimension smaller than the girt depth.

Interior Column

Interior columns templates are used at any location that is away from the edges of the building. When columns are recessed below finished floor they will automatically match base place size to ensure sufficient blocked out area to set the column.

Corner Column

Corner Column templates have a leg that extends to adjacent wall steel line, edge of concrete, to make sure the offset is correctly placed. The return leg is designed to snap off after the template is set to aid concrete finishing.

With Portal Columns

Occurs at locations where a portal frame is adjacent to a main frame column. The bolt patterns for each column are combined into one template to eliminate the possibility of misaligning the two columns.

With Auxiliary Column

Occurs at locations where there is an additional column adjacent to a flange of the main frame column. These are typically crane or mezzanine columns. The bolt patterns for each column are combined into one template to eliminate the possibility of misaligning the two columns.

Angle Brace

Occurs at locations where angle bracing requires additional rows of bolt holes perpendicular to the web of the column.

Base Plate Size

This is an option that forces the template to match the size of the base plate. It is useful where columns sit either below the finished floor or on pedestals to ensure that the block out area or pedestal are sufficient size for the columns.

Extended Nailing Area

Perimeter templates default to a 2" nailing area extending past the steel line, edge of concrete, allowing attachment to forms. This dimension can be extended to allow for a concrete notch for sheeting or the thickness of a veneer attaching outside the steel line.
